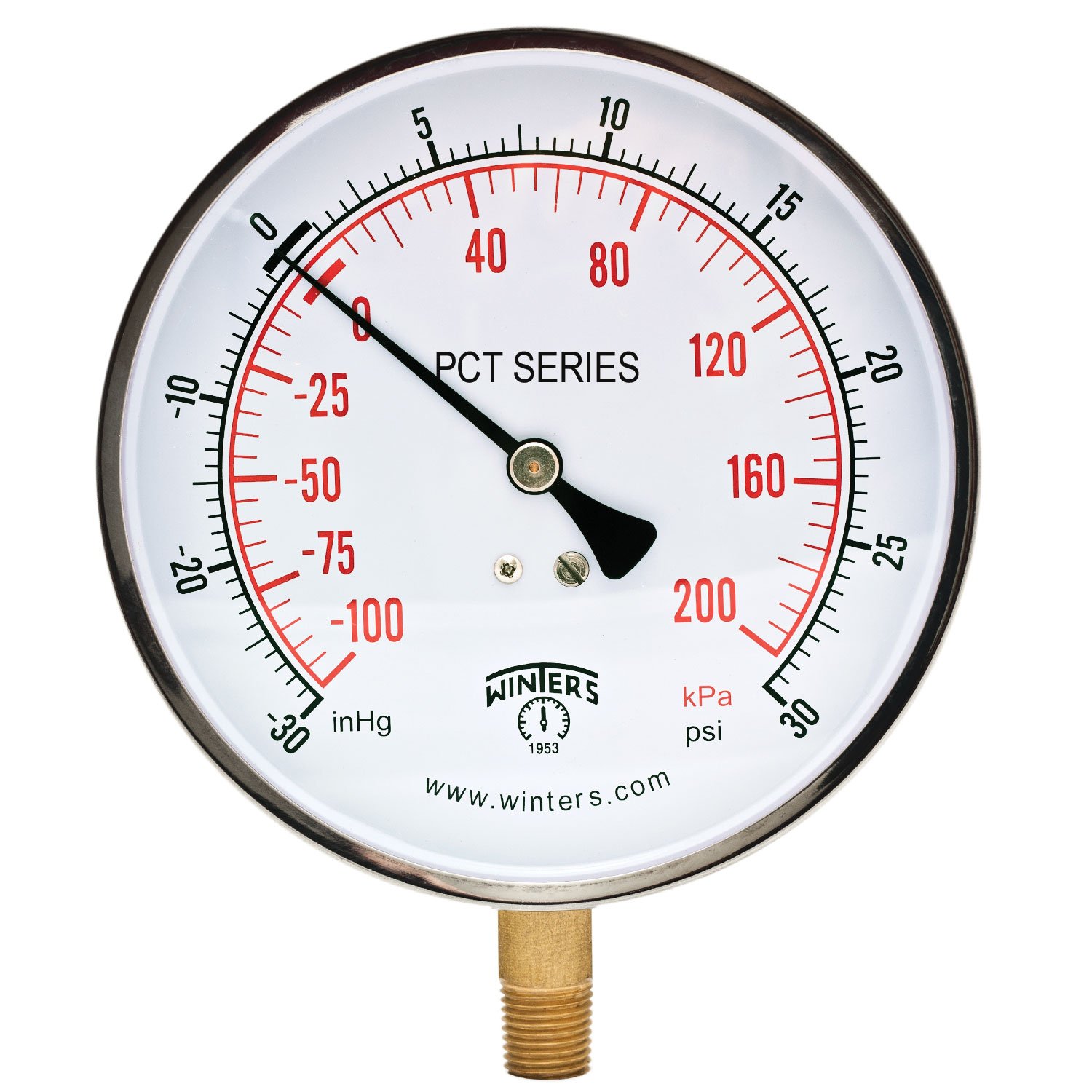

Winters PCT Series Stainless Steel 304 Dual Scale Contractor Pressure Gauge, 30"Hg Vacuum/kpa, 4-1/2" Dial Display, +/-1% Accuracy, 1/4" NPT Bottom Mount
Product details
| Management number | 220426218 | Release Date | 2026/05/03 | List Price | $13.23 | Model Number | 220426218 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Most commercial air, water and steam services that require a +/-1 percent full-scale accuracy. Specifications: dial: 4-1/2" (115mm) white aluminum dial with black and red markings. Case: stainless steel 304. Lens: acrylic. Ring: stainless steel 304. Socket: brass. Connection: 1/4" NPT standard. Bourdon tube: phosphor bronze. Movement: brass. Pointer: aluminum, anodized black, recalibrator screw. Welding: silver solder. Over-pressure limit: 25 for pressures up to 1400 psi (9,653 kPa) and 15 percent for pressures over 1400 psi (9,653 kPa). Working pressure: maximum 75 percent of full scale value. Ambient/process temperature: -40 degree Fahrenheit to 250 degree Fahrenheit (-40 degree C to 65 degree C). Accuracy: +/-1 percent ANSI/ASME grade 1A. Enclosure rating: IP52. Economical 4-1/2" stainless steel case gauge. Case is made of stainless steel 304. Zero adjustment screw. CRN registered. Pressure range: 30" Hg vacuum/kPa.
- Economical 4-1/2" stainless steel case gauge
- Case is made of stainless steel 304
- Zero adjustment screw
- CRN registered
| UPC | 628311251005 |
|---|---|
| Model | PCT320 |
| Brand Name | Winters Instruments |
| Unit Count | 1.0 Count |
| Item Weight | 0.8 Pounds |
| Part Number | PCT320 |
| Manufacturer | Winters |
| Material Type | Stainless Steel |
| Global Trade Identification Number | 00628311251005 |
