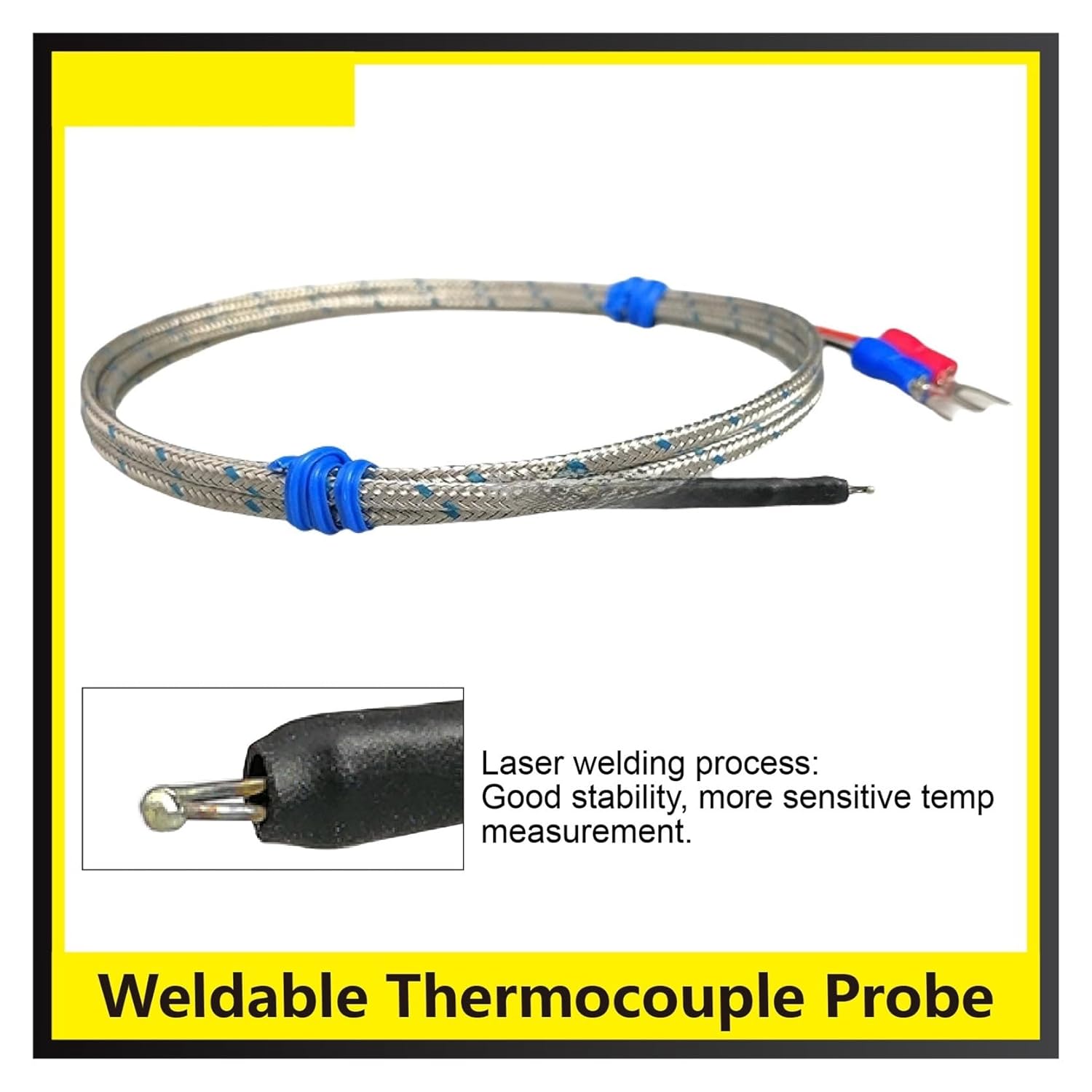

Weldable Thermocouple Probe K Type Bead Thermocouple Exposed Bead Sensor Fast Response 0‑600°c Industrial Bare Wire
Product details
| Management number | 211031413 | Release Date | 2026/04/04 | List Price | $20.28 | Model Number | 211031413 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1.NOTE:Default Configuration:oThermocouple type: KoTemperature range: 0 -600oWire length: 0.5M to 10MoTerminal: U-type terminal, 2-wire systemCustomizable Options:oThermocouple types:E, T, JoTemperature range:E: 0-400T: -200-350J: 0-600oWire length:5M, 10M, 20M, etc. (customizable)oTerminal types:Pin connector, 3-wire U-type terminal, XH-series, aviation, etc.2.ParametersSpecificationDetailsThermocouple TypeK Type (Default), E/T/J (Customizable)Temperature Range0-600°C (Default)Cable MaterialStainless steel braided shieldWire Core2*0.4mm precision-grade thermocouple wireCable Length0.5m - 10m (Default), customizableConnector TypeU-type terminal (Default), pin terminal, 3-wire U-type, XH aviation (Customizable)ApplicationDirect temperature measurement or use with protective tubesCompatibilityWorks with temperature controllers and sensors (not included)3.Features.Advanced Welding Technology Ensures high stability and enhanced temperature sensitivity..Stainless Steel Braided Shielding Provides better durability, protection, and resistance to electromagnetic interference..Multiple Connector Options U-type terminal, pin terminal, aviation plugs, and more customizable options..Customizable Lengths Cable length can be customized (5m, 10m, 20m, etc.)..Wide Compatibility Can be used with temperature controllers and industrial sensors.4.ApplicationsIndustrial temperature monitoringHigh-temperature processing systemsLaboratory and research experimentsProtective tube thermocouple applicationsOrigin : Mainland ChinaThermocouple Type : K Type (Default), E/T/J (Customizable)Temperature Range : 0-600°C (Default)Cable Material : Stainless steel braided shieldWire Core : 2*0.4mm precision-grade thermocouple wireCable Length : 0.5m - 10m (Default), customizableConnector Type : U-type terminal (Default), pin terminal, 3-wire U-type, XH aviation (Customizable)
- Customizable Lengths:Tailor the probe to your needs with customizable cable lengths from 0.5m to 20m.
- Multiple Connector Options:Offers versatility with U-type terminal, pin terminal, and aviation connector choices.
- Thermocouple K Type|Thermocouple K Type Bead|Advanced Welding Technology:Ensures high stability and enhanced temperature sensitivity with advanced welding.
- Stainless Steel Braided Shielding:Provides better durability and resistance to electromagnetic interference with stainless steel shielding.
- Wide Compatibility:Works seamlessly with temperature controllers and industrial sensors for diverse applications.
| Color | K-10m |
|---|---|
| Gauge | 1.0 |
| Model | UCCBUEMMM |
| Pitch | 1 Inches |
| Brand Name | YCCMSM13 |
| Part Number | UCCBUEMMM |
| Manufacturer | YCCMSM13 |
| Connector Type | Clamp |
| Specification Met | UL |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
