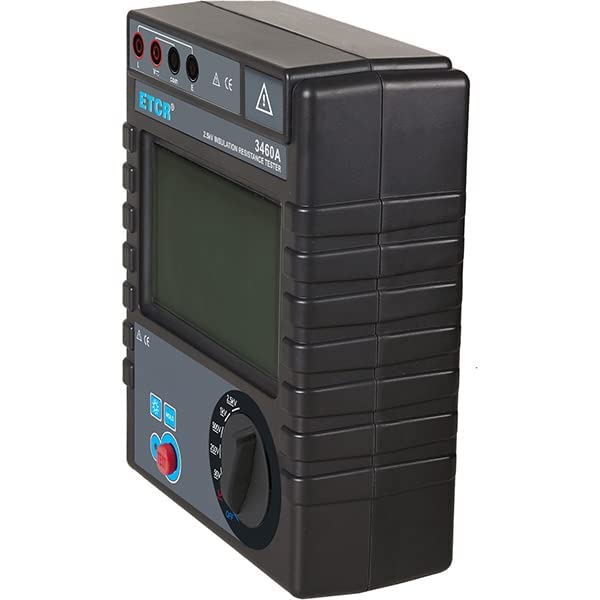

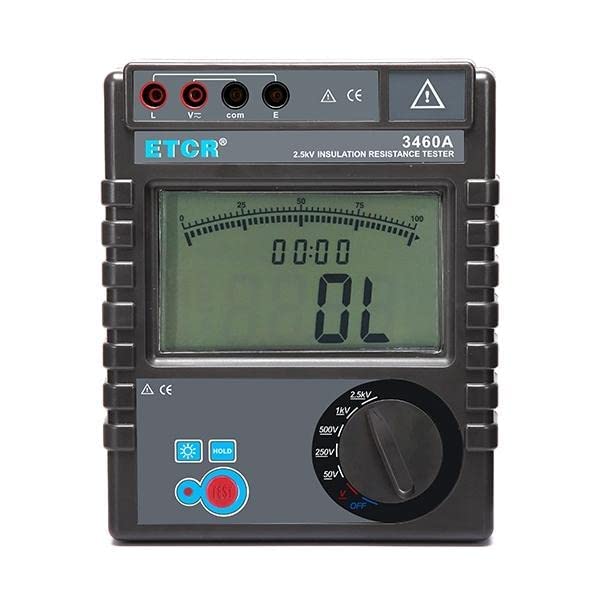

Insulation Resistance Meter Tester Insulation Resistance Test Instrument Digital AC/DC Voltmeter with Range 0.1MΩ to 400GΩ Max. Rated Voltage 5000V

QIUSUO Insulation Resistance Meter Tester Insulation Resistance Test Instrument Digital AC/DC Voltmeter with Range 0.1MΩ to 400GΩ Max. Rated Voltage 5000VBatteries are not included in the package！ Introduction： ■ Insulation resistance meter, also known as digital megohmmeter, insulation resistance tester, etc., is used for insulation resistance testing. This meter is a high performance digital meter with LCD large screen with backlight display, data hold, automatic shutdown and other functions. Insulation resistance value, test time, and output voltage are displayed on the same screen. It also has the function of measuring AC/DC voltage. The instrument has a maximum output voltage of 5000V, a maximum test resistance of 400GΩ, and a maximum short-circuit current of 2mA. ■ Insulation resistance meter whole machine beautiful, wide range, high precision, high resolution, convenient operation, easy to carry, accurate and reliable, stable performance, strong anti-interference ability. And with shockproof, dustproof and moistureproof structure, it is a common and essential instrument for telecommunications, electric power, meteorology, machine room, oil field, electromechanical installation and maintenance, and industrial enterprise sectors that use electric power as industrial power or energy. It is suitable for measuring the resistance value of various insulation materials and the insulation resistance of transformers, motors and electrical equipment, etc. Functions: ■ Suitable for measuring the insulation resistance of motors, switches, electrical appliances and other electrical equipment and insulation materials, insulation resistance value, test time, output voltage on the same screen display ■ Insulation resistance range: 0.1MΩ~400GΩ ■ Voltage range: AC/DC 0~750V ■ Maximum rated voltage: 5000V ■ Short circuit current: 2mA MAX Parameters： ■ Function: Insulation resistance test, AC voltage test, DC voltage test ■ Power supply: DC 1.5V 6 LR14 dry cell batteries( Batteries are not included in the package！) ■ Rated voltage: 50V; 250V; 500V; 1000V; 2500V; 5000V ■ Output voltage accuracy: (5%~10%) ±10V ■ Insulation resistance range: 0.1MΩ～400GΩ ■ Voltage range: AC/DC: 0V～750V ■ Short circuit current: 2mA MAX ■ Maximum capacitive load: 1uF ■ Shift: Turn the shift knob to select the corresponding gear ■ Backlight: Controllable off-white backlight, suitable for dim places ■ Display mode: 4-digit large LCD display with obvious contrast ■ Measurement indication: LED flashes and buzzer sounds during measurement ■ LCD size: 108mm×65mm ■ Instrument size: length, width and height: about 212mm × 175mm × 76mm ■ Test line: high voltage bar test line: 1 red; meter pen test line: 1 black; alligator clip test line: 1; alligator clip: 1 ■ Measurement time: single test time is 10min, the user can manually stop during the test or automatically stop after 10min, and the screen displays the measurement data. ■ Battery voltage: battery undervoltage symbol display, battery voltage is low to remind timely replacement of the battery ■ Automatic discharge function: the symbol flashes when discharging. The symbol extinguishes when the discharge is completed. ■ Automatic shutdown function: automatic shutdown after 15 minutes of power on ■ Power consumption: standby: about 40mA (backlight off); measurement: about 100mA (backlight off) ■ Mass: meter: about 1230g ■ Working temperature and humidity: -10℃～40℃; 80%rh or less ■ Storage temperature and humidity: -20 ℃ ~ 60 ℃; 70% rh or less ■ Suitable for safety regulation: IEC61010-1 (CAT Ⅲ 300V, CAT IV 150V, pollution degree 2) Packing:■ Instrument:1 set ■ High voltage bar:1 red ■ Meter pen test line:1 black ■ Alligator clip test line:1 black ■ Alligator clip:1pc ■ Instruction manual, warranty certificate, certificate of conformity:1 set

• Suitable for measuring the insulation resistance of motors, switches, electrical appliances and other electrical equipment and insulation materials, insulation resistance value, test time, output voltage on the same screen display
• Insulation resistance range: 0.1MΩ~400GΩ
• Voltage range: AC/DC 0~750V
• Maximum rated voltage: 5000V
• Short circuit current: 2mA MAX
