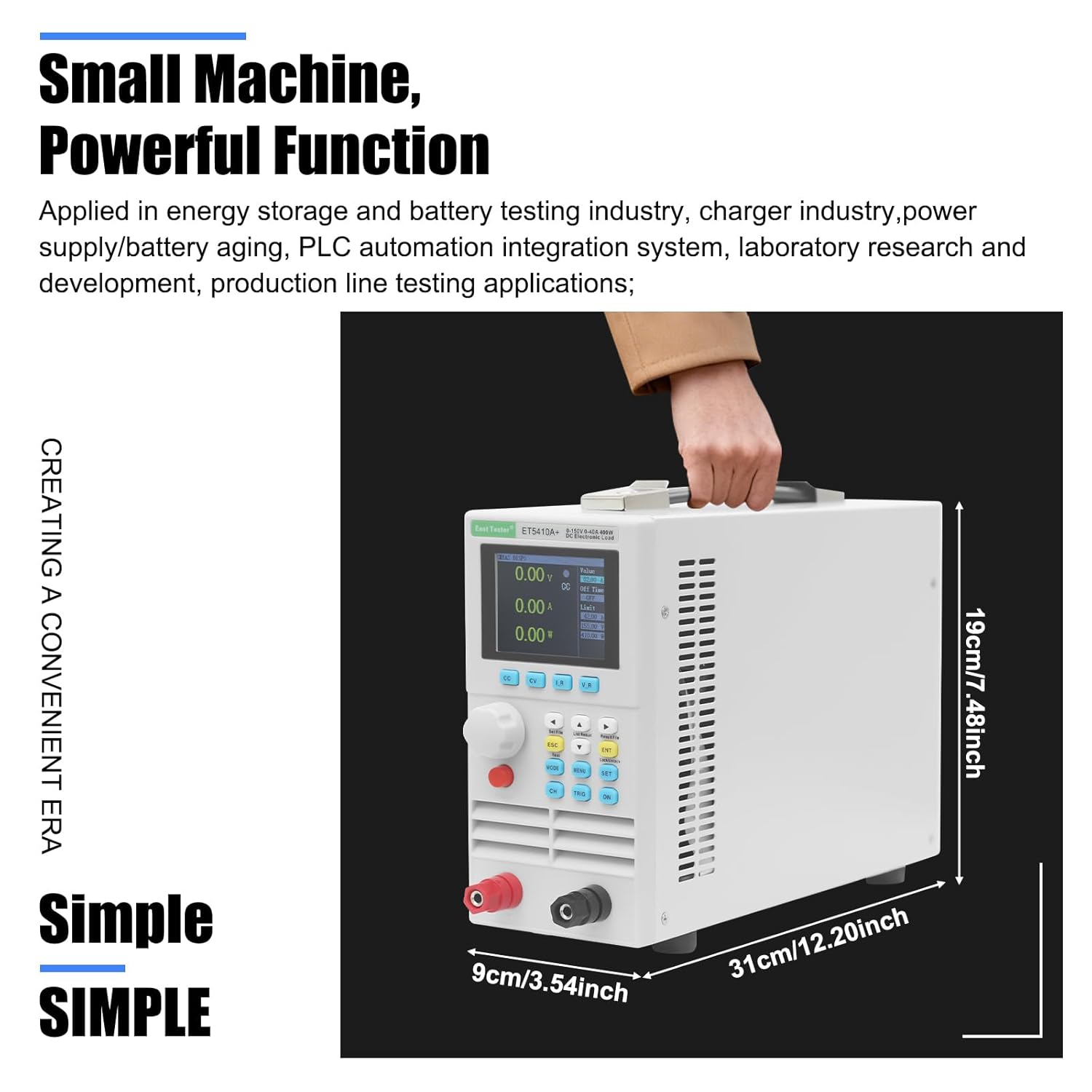

ET5410A+ DC Electronic Load Tester, 400W Programmable Battery Testers, Single Channel DC Battery Capacity Load Detector, 0-150V, 0-40A, 2.8'' TFT LCD Display

ApplicationThe product is mainly used for testing lighting fixtures, chargers, batteries, internal resistance, switching power supplies, mobile power supplies, lithium batteries, energy vehicles, LED driver power supplies, etc. It is also suitable for testing on production lines and aging process testing.SpecificationsColor: WhiteMaterial: Aluminum, PCB Electric Board, SiliconeProcess: Screen PrintingMount Type: Free StandingAssembly Required: NoChannel Type: Single ChannelPlug Standard: US StandardPower: 400WInput Voltage: 0-150VInput Current: 0-40AConstant Voltage Mode:Range: 0.1-19.999V, 0.1-150.00VResolution: 1mV, 10mVAccuracy: ±(0.05%+0.02%FS)Constant Current Mode:Range: 0-3.000A, 0-40.00AResolution: 1mA, 10mAAccuracy: ±(0.05%+0.05%FS)Constant Resistance Mode:Range: 0.05Ω-1kΩ, 1kΩ-4.5kΩResolution: 10mΩ, 100mΩAccuracy: ±(0.1%+0.5%FS)Constant Power Mode:Range: 0-400WResolution: 10mWAccuracy: ±(0.1%+0.5%FS)Dynamic Test Function:Mode: CC, CVT1&T2: 50ms~60s, 1ms resolutionBattery Test Function:Discharge Mode: CC, CRMaximum Discharge Capacity: 9999AhResolution: 1mA, 10mA, 10mΩ, 100mΩVoltage Readback Value:Range: 0~19.999V, 0~150.00VResolution: 1mV, 10mVAccuracy: ±(0.05%+0.1%FS)Current Readback ValueRange: 0~3.000A, 0~40.00AResolution: 1mA, 10mAAccuracy: ±(0.05%+0.1%FS)Power Readback ValueRange: 0~400WResolution: 10mWAccuracy: ±(0.1%+0.5%FS)Over-voltage: >155V Cut Off InputOver Current: >42A Cut Off InputOver Power: 420WOver Temperature: 85℃/185℉Voltage (CV) Short-circuit Range: 0VProduct Overall Size: 31*9*19cm/12.2*3.54*7.48inPackage Size: 40*28*20cm/15.75*11.02*7.87inGross Weight: 3.8kg/8.38lbsNet Weight: 3.61kg/7.96lbsPackage Included1* Electronic Load Tester1* English Manual1* Power CordNotes1. Please check the size carefully before ordering.2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

• 【Premium Material】: The ET5410A+ DC Electronic Load Tester features a high-quality PCB electric board, silicone, and aluminum construction, ensuring exceptional durability and rust resistance for optimal performance in single channel electronic load testing.
• 【Multi-functional Capability】: This versatile tester supports multiple basic measurement modes including CC, CV, CR, CP, as well as internal resistance tests for batteries and power supplies, making it an essential tool for comprehensive testing and analysis of various devices.

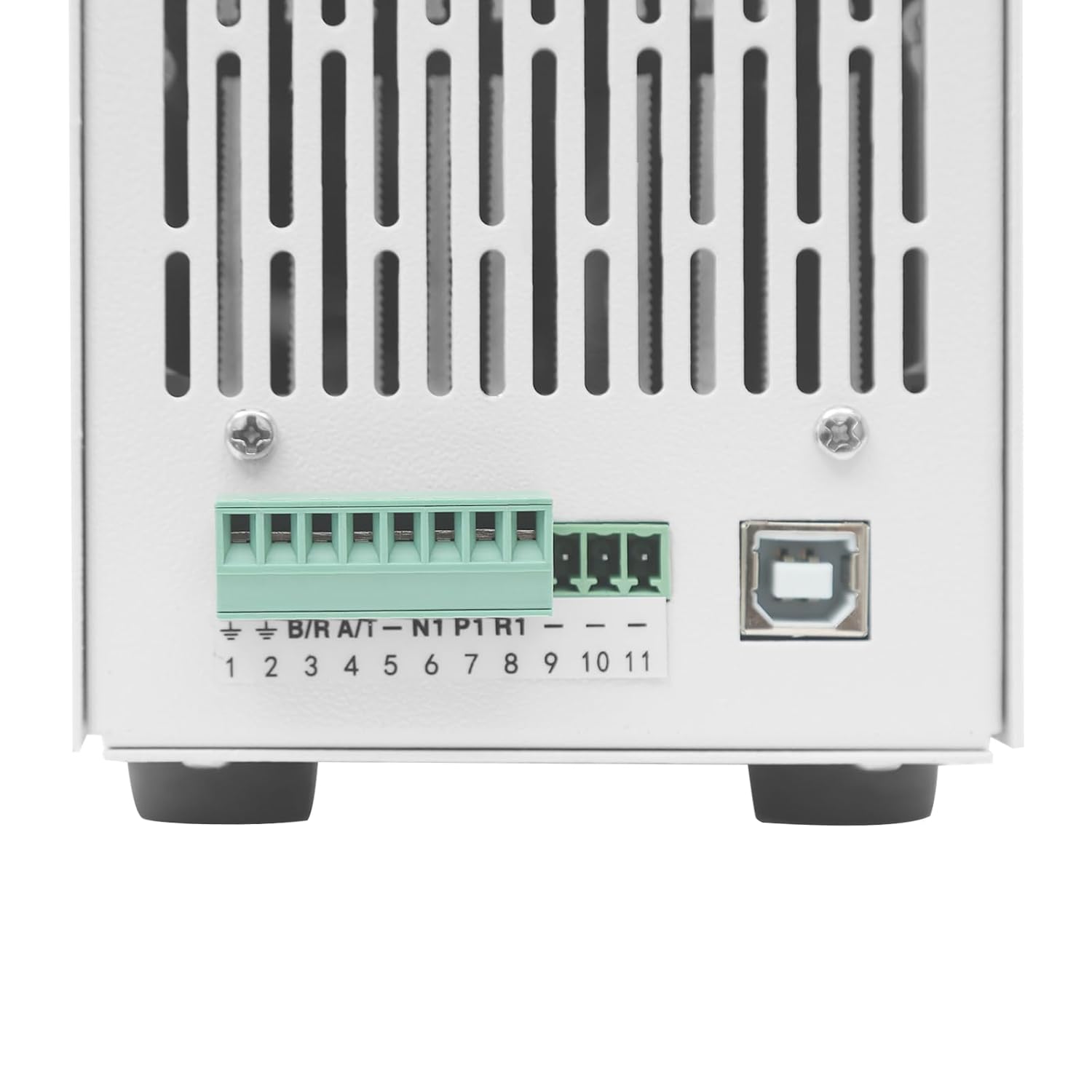

• 【Thoughtful Design Features】: Equipped with software remote compensation, external trigger input support, and the ability to operate via USB, this single channel electronic load tester ensures data integrity during power outages, while its built-in functions protect against overvoltage, overcurrent, and short circuits.
• 【Efficient Heat Dissipation】: Designed with heat dissipation holes and a built-in fan, the ET5410A+ maintains temperature stability during operation, avoiding overheating and extending the lifespan of your single channel electronic load tester.
• 【User-Friendly Operation】: The sensitive buttons paired with a 2.8-inch TFT LCD display make parameter setting straightforward and accurate, while its lightweight build and convenient handle allow for easy transportation to any worksite, enhancing usability on the go.
