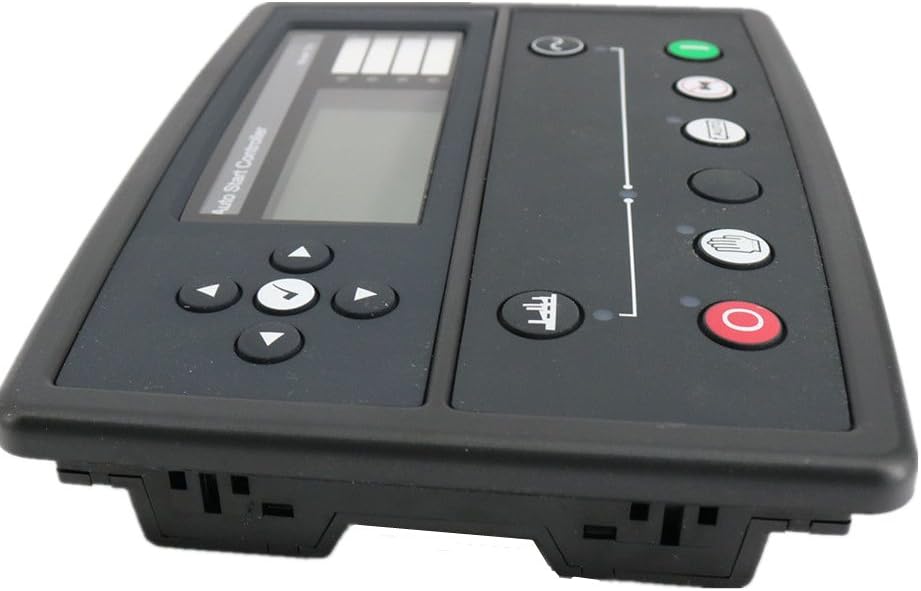

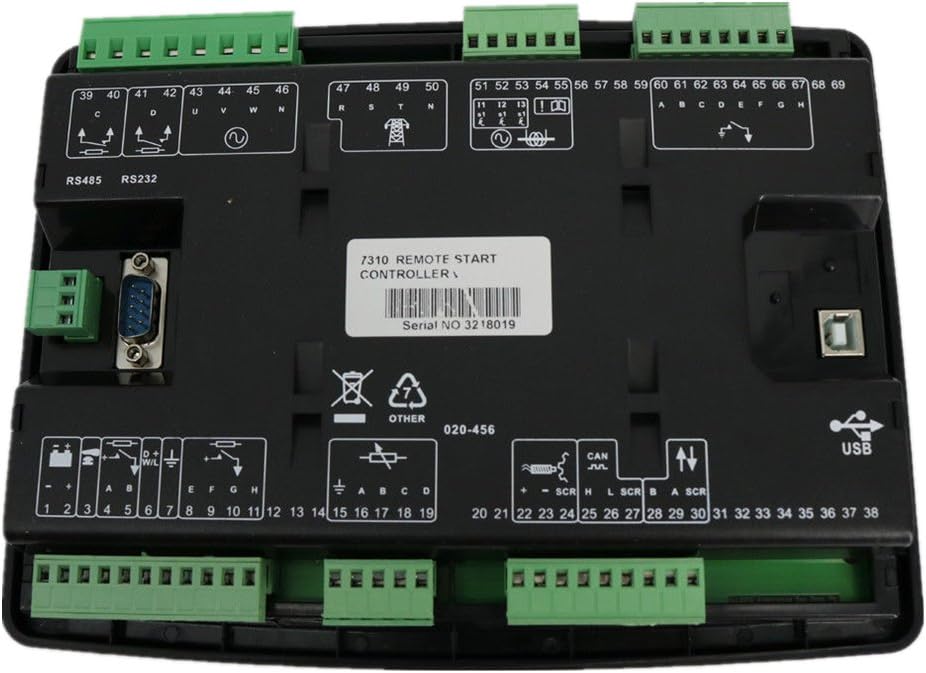

DSE7310 Diesel & Gas Genset/Generator/Engine Controller Control Module Panel Complete Replacement for Deep Sea 7310

KEY FEATURES: 4-Line back-lit LCD text display Five key menu navigation Front panel editing with PIN protection LED and LCD alarm indication Customisable status screens Power save mode Support for up to three remote display units 9 configurable inputs 8 configurable outputs Flexible sender inputs Configurable timers and alarms 3 configurable maintenance alarms Multiple date and time scheduler Configurable event log (250) Control logic facilities Easy access diagnostic page CAN and Magnetic Pick-up/Alt. sensing Fuel usage monitor and low fuel alarms Charge alternator failure alarm Manual speed control (on compatible CAN engines) Manual fuel pump control Engine exerciser “Protections disabled” feature kW overload protection Power monitoring (kW h, kV Ar, kV A h, kV Ar h) Load switching (load shedding and dummy load outputs) Unbalanced load protection Independent Earth Fault trip True dual mutual standby with load balancing timer USB connectivity Backed up real time clock Fully configurable via DSE Configuration Suite PC software Configurable display languages Remote SCADA monitoring via DSE Configuration Suite PC software User selectable RS232 and RS485 communications SMS Messaging (additional external modem required) Additional display screens to help with modem diagnostics Integral PLC editorDC SUPPLY:8 V to 35 VDimensions:240 mm x 181 mm x 42 mm (9.4” x 7.1” x 1.6”)PANEL CUT-OUT220 mm x 160 mm (8.7” x 6.3”)

• DSE 7310 is an Auto Start Control Module for a wide variety of single, diesel or gas, gen-set applications
• Real-time clock provides accurate event logging
• Set maintenance periods can be configured to maintain optimum engine performance
• Enhanced event and performance monitoring, remote communications and dual mutual standby to reduce engine wear
• PLC editor allows user configurable functions to meet specific application requirements
