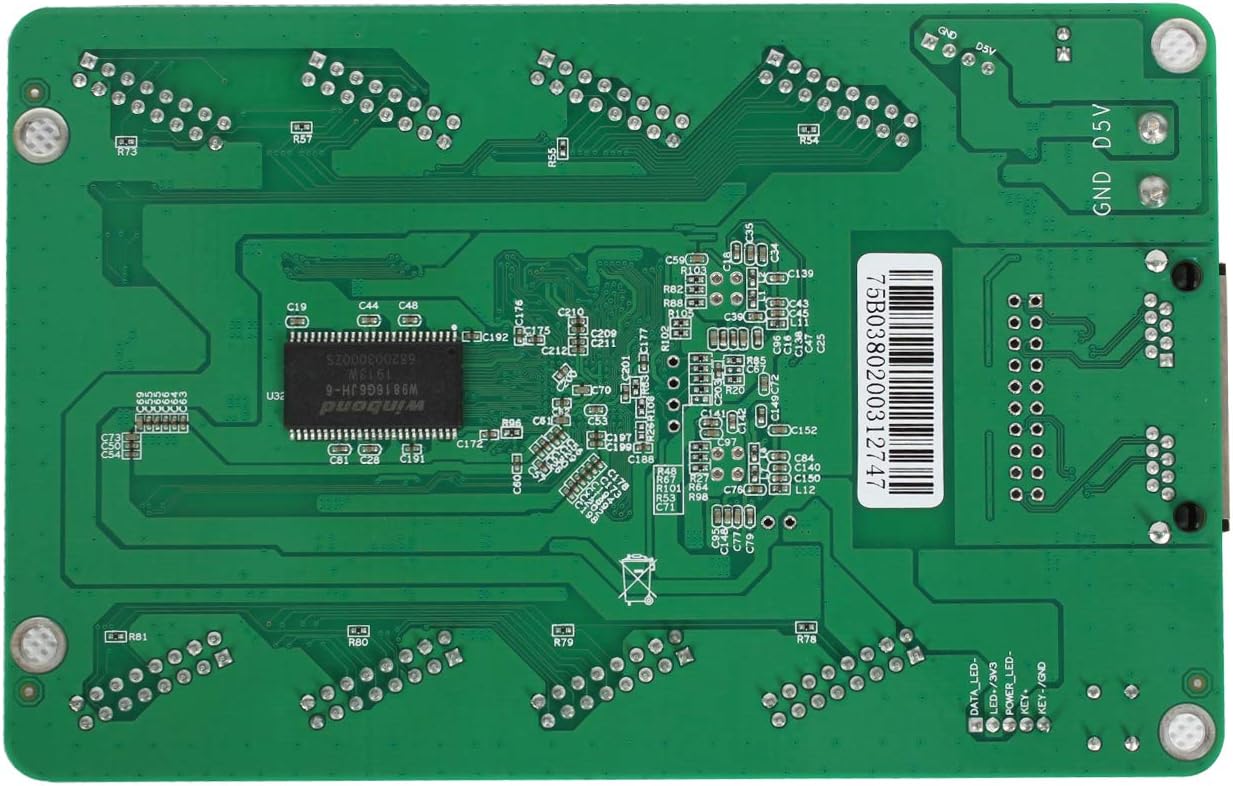

Colorlight 5A-75B Receiving Card Led Display Synchronous Control Card(V8.0 Version) with Software Configuration Instruction

Product Description: 5A-75B receiving card was Colorlight special introduced high performance product that designed for customers to save cost, reduce points of fault and failure rate. Based on 5A receiving card, 5A-75B integrates the most common HUB75 interfaces, which is more reliable and more economical on the premise that ensure high-quality display. Product Specification: Sending device: Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc Size:5.63* 3.66in Input voltage: DC 3.3V-6V Body static resistance: 2KV Weight:0.22lb Rated power:3W Features: 1.Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved. 2.Support any scan mode from static to 1/32 scan. 3.Support conventional chips, PWM chips and lighting chips. 4. Wide working voltage range with DC3.3~6V. 5. First adopt all components face up configuration to reduce damage. 6. Compatible with Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc.

• 1) 8bit video source input
• 2) Color temperature adjustment.
• 3) 240Hzframe rate.
• 4) Better gray at low brightness
• 5) Pixel-to-pixel calibration in brightness and chromaticity.
