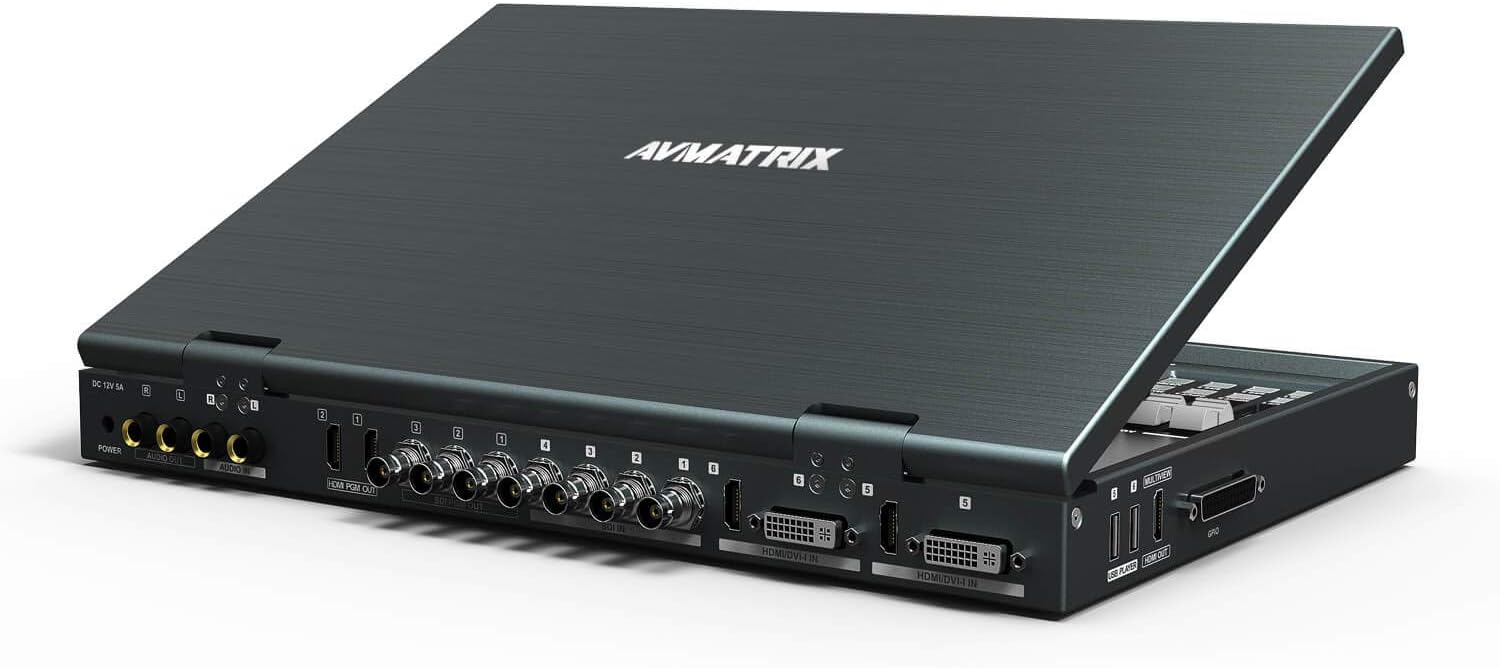

AVMatrix PVS0615 6-Channel Portable Multi-Format Video Switcher with 15.6" LCD Monitor

AVmatrix PVS0615 Portable 6-Channel Multi-format Video Switcher, 15.6" FHD LCD Display, 6 Channel Inputs, Input Format Auto-Detected and PGM/AUX Output Format Selectable, Audio MixerPVS0615 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and video recording. The unit integrated a 15.6" LCD monitor which can be used in wide variety of venues for events, seminars, etc.Key FeaturesPortable All-In-One design with 15.6 inch FHD LCD display6 channel inputs: 4xSDI and 2xDVI-I/HDMI/VGA/USB3xSDI PGM out (1xAUX), 2xHDMI PGM & 1xHDMI multiview outInput format auto-detected and PGM/AUX output format selectableT-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effectsLuma Key/ Chroma Key for virtual studioPIP/POP window size and position adjustableRecord PGM video to SD card, up to 1080p60Audio mixer: TRS audio & SDI, HDMI, USB embedded audioSpecificationsResolution: 1920x1080Video Inputs: 4×3G/HD/SD-SDI, 2×HDMI/DVI/VGA/USBBit Rate: 270Mbps~3GbpsImpedance: 75Ω (SDI/VGA), 100Ω (HDMI/DVI)SDI Video Rate: Auto detection, SD/HD/3G-SDISDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424MPGM Outputs: 3×3G/HD/SD-SDI; 2×HDMIPGM Output Format: 1080p 50/60/30/25/24, 1080i 50/60Multiview Output: 1×HDMIMultiview Output Format: 1080p 60Return Loss: >15dB 5MHz~3GHzSignal Amplitude: 800mV±10% (SDI/HDMI/DVI/VGA) LAN: RJ45SD Card Slot: 1Operation Temperature: -20°C~60°CStorage Temperature: -30°C~70°COperation Humidity: 20%~70%RHStorage Humidity: 0%~90%RHPower Supply: DC 12V 5A, 33WDimensions: 10.7"W x 1.72"D x 14.76"LWeight: 8.38 Pounds

• Portable All-In-One design with 15.6 inch FHD LCD display
• 6 channel inputs: 4xSDI and 2xDVI-I/HDMI/VGA/USB
• 3xSDI PGM out (1xAUX), 2xHDMI PGM & 1xHDMI multiview out
• Input format auto-detected and PGM/AUX output format selectable
• T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
