2Pieces KEDU HY12-9-7 Rocker Switch Push Button Switches for Household Electrical Appliances and Similar Device,125/250V 20A HY12-9-7 (HY12-9-7)
Product details
| Management number | 218083794 | Release Date | 2026/05/03 | List Price | $10.40 | Model Number | 218083794 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

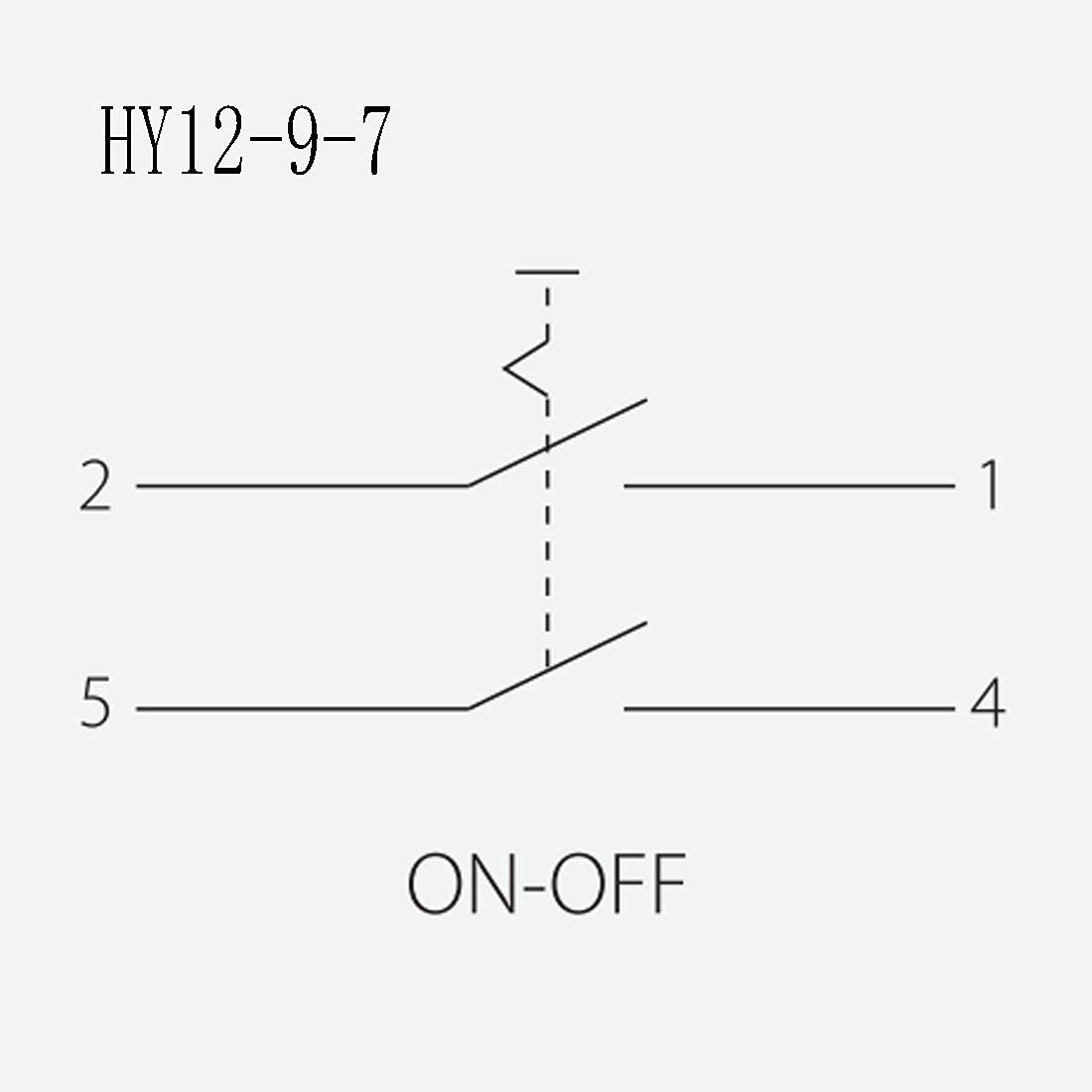

Packing: 2 pieces of rocker switches. The HY12-9 series rocker switch has six models: 1. HY12-9-2: (ON)-OFF, unilateral automatic reset function, the device is in the ON state when the button is pressed, and the button is automatically reset to the OFF state when the button is released. 2. HY12-9-3: (ON)-OFF-(ON), bilateral automatic reset function, press the button and the device is in the ON state, and release the button to automatically reset to the OFF state. 3. HY12-9-4: ON-OFF, press the button and the switch is in the ON or OFF state, and the switch keeps the original action after releasing the button. 4. HY12-9-5: ON-OFF-ON, press the button and the switch is in the ON or OFF state, after releasing the button, the switch keeps the original action. 5. HY12-9-6: ON-(ON), unilateral automatic reset function, this switch is also called universal transfer switch. This switch is generally only used for voltage commutation. 6. HY12-9-7: ON-OFF, press the button and the switch is in the ON or OFF state, after releasing the button, the switch keeps the original action.
- Environmental protection materials: the shell is made of high-strength flame-retardant plastics, silver-plated welding terminals, and all parts meet the EU ROHS environmental protection standards.
- Special function: HY12-9 series rocker switch has conventional ON-OFF function, unilateral automatic reset function and bilateral automatic reset function, which can meet various needs of customers.
- High-end quality: from the selection of raw materials procurement, from molds to material processing, from parts to finished product assembly, strictly control every process, pay attention to every detail, and strive for perfection.
- Product inspection: The product has passed dozens of tests such as temperature rise, overload, durability, pressure resistance, mechanical strength, rust prevention, fire resistance, insulation resistance,alternating damp heat, salt spray test, etc.
- Product application range: Household electrical appliances and similar device.
| Terminal | Button |
|---|---|
| Brand Name | KeDu |
| Unit Count | 1.0 Count |
| Item Weight | 20 Grams |
| Part Number | HY12-9 |
| Switch Type | Rocker |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Manual |
| Manufacturer | KEDU |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | Snap-In Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 20 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |

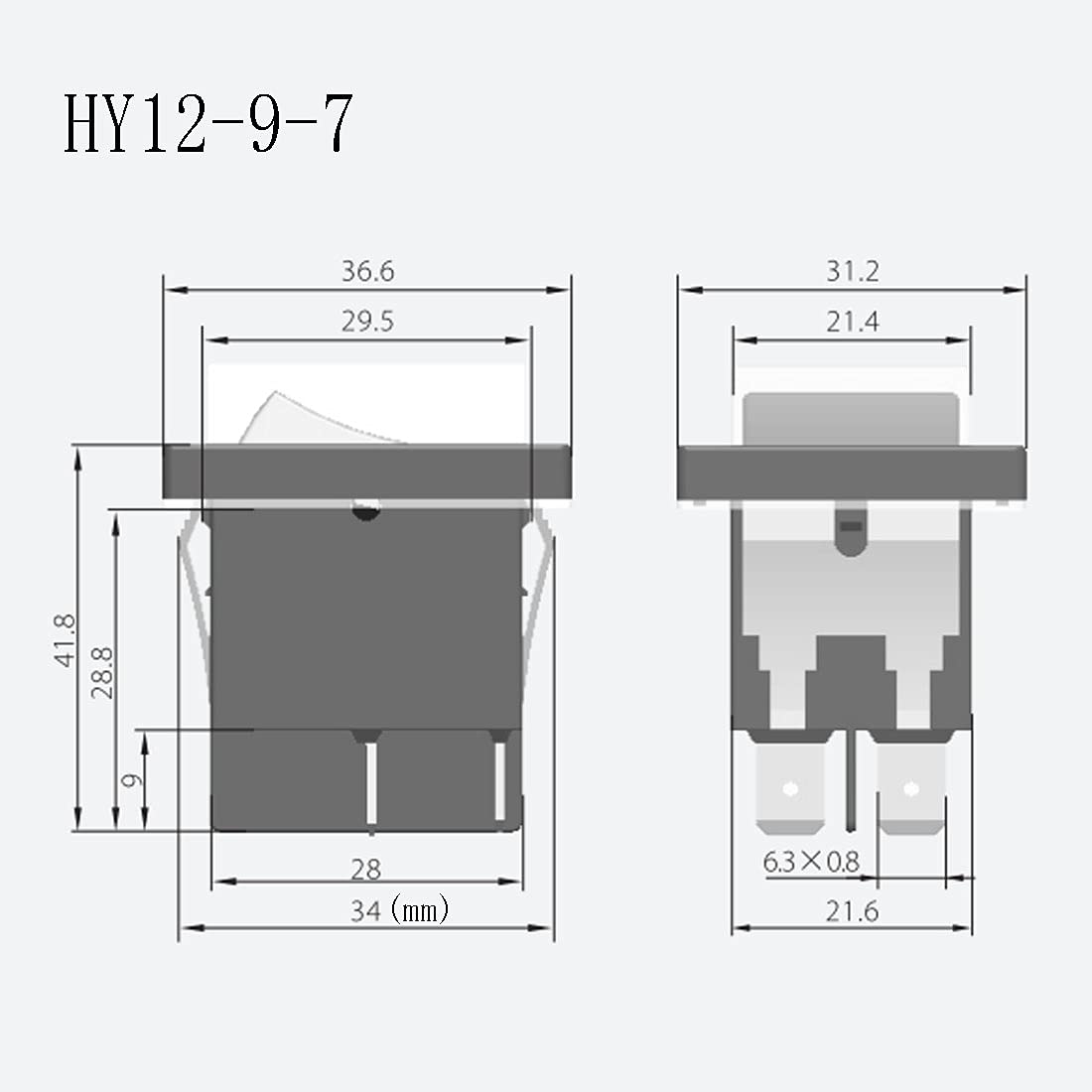

| Item Dimensions | 1.44 x 1.23 x 1.65 inches |
| Number of Items | 2 |
| Contact Material | Copper Nickel Alloy |
| Operating Voltage | 250 Volts |
| Specification Met | RoHS |
| Compatible Devices | Household electrical appliances |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP55 |
