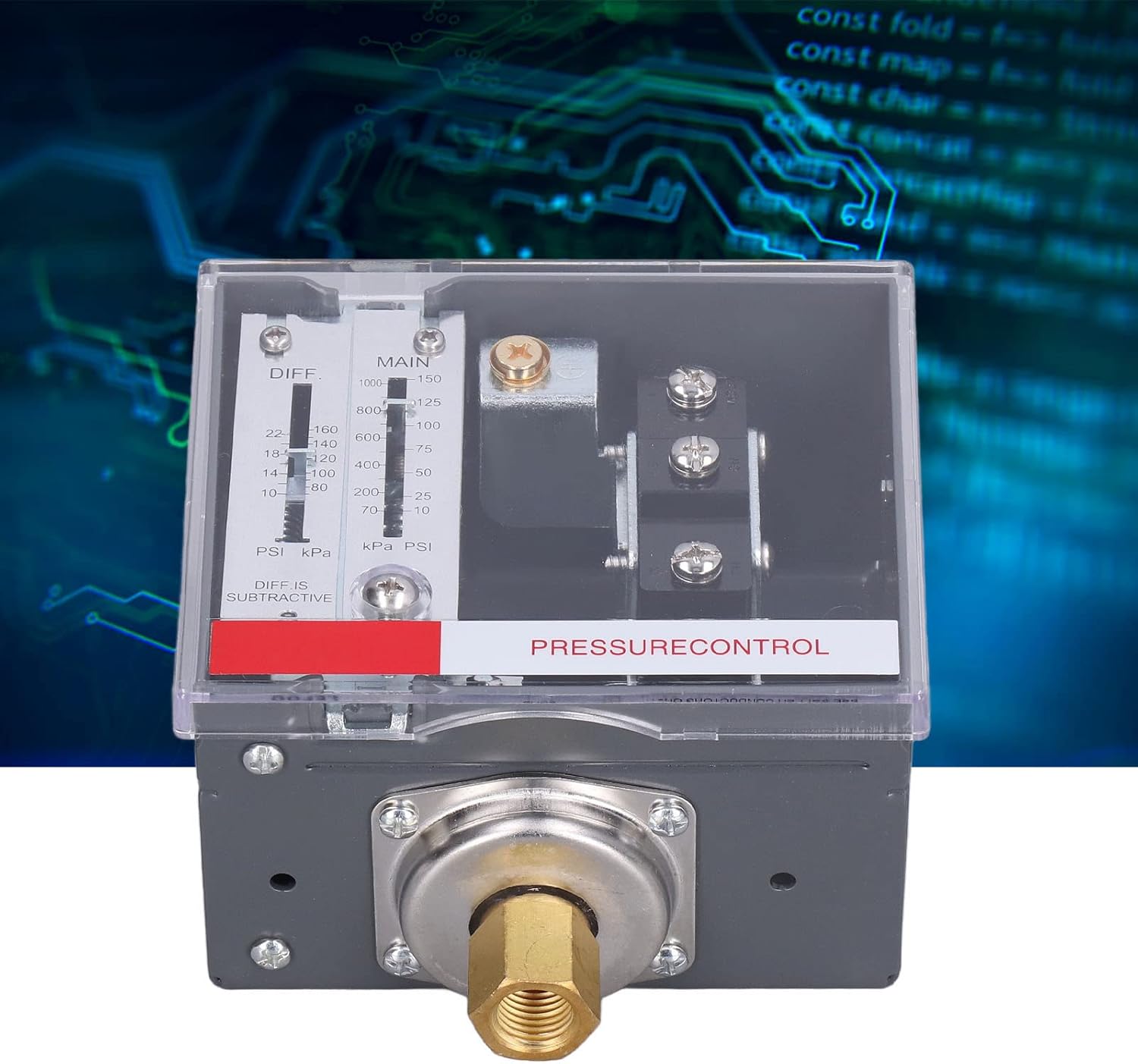

225psi Pressure Switch for Boiler Water Tower Systems, Pressure Controller with NPT 1/4-18 Thread Connection for Reliable Water Pressure Regulation in Water Applications

Specification:Item Type: Pressure ControllerModel: LF56Maximum Ambient Temperature: 66℃Maximum Load: 15A 250VACMaximum Diaphragm Pressure: 225psiPressure Range: 10-150psi / 70-1000kPaPressure Difference Range: 10-22psi / 80-160kPaInterface Thread: NPT1/4-18 Type: SPDT Method: Single pole double throwDiaphragm: Stainless steelInterface: BrassWorking Medium: Non corrosive medium such as air, water, oil, liquid, etc., containing liquid is not availableAmbient Temperature: Work normally within the range of -29℃~66℃Medium Temperature: -40℃~180℃ without freezingPackage List:1 x Pressure Controller1 x User ManualNote:1. Standard model for non corrosive media such as , water, air, liquids, etc., liquid cannot be used.2. Allowable ambient temperature is ‑29℃‑66℃.

• [View Pressure Control Point] : Easily monitor pressure levels with a clear view through the plastic cover, thanks to the single pole double throw pressure switch.
• [Control Boiler and Water Tower] : Effortlessly manage the pressure regulation system in boilers and water towers while accurately detecting pressure fluctuations.
• [Control on off Action] : Detect pressure changes to the internal switch, enabling convenient control of the external circuit.
• [Npt1/4‑18 Thread] : Crafted with a stainless steel pressure diaphragm and brass pressure joint, providing durability and reliability with npt1/4‑18 thread.
• [Pressure Limiting and Alarming] : Ensure control and alarming of non-corrosive liquids, gases, and steam for optimal safety.
