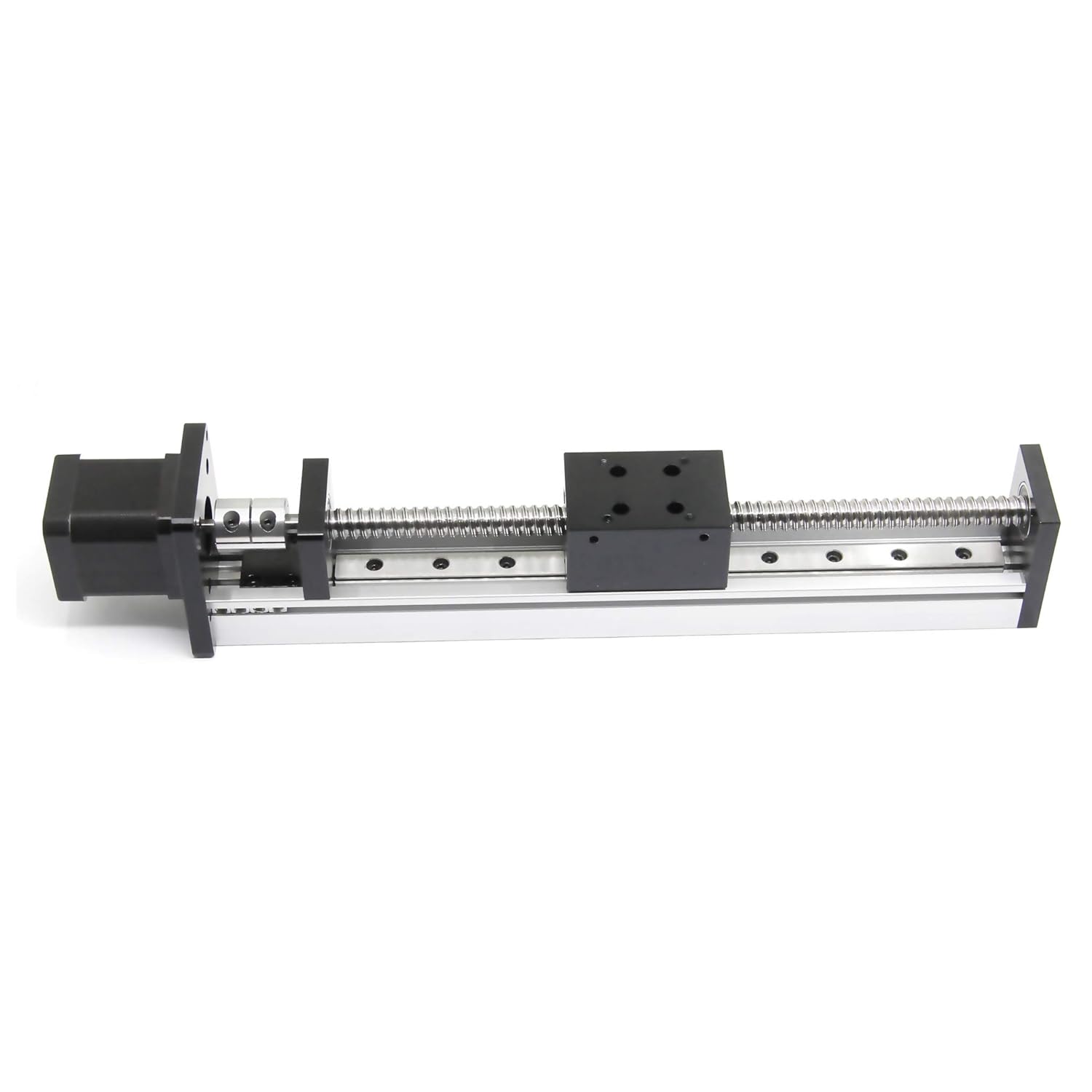

200mm Length Travel Linear Stage Actuator with Square Linear Rails Ballscrew SFU1204 with NEMA17 Stepper Motor for DIY CNC Router Parts X Y Z Axis
Product details
| Management number | 211204767 | Release Date | 2026/04/04 | List Price | $33.52 | Model Number | 211204767 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 42mm Motor length: 47mm Holding torque: 1.2N.m Current: 1.5A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 200mm Total length :365mm Type: linear system moulde Ballscrew type: SFU1204 (diameter:12mm, pitch of screw:4mm) Level ballscrew: c7 Weight: 1550g Package Content: 1pcs Linear Stage Actuator with NEMA17 Stepper Motor 1pcs stepper motor cable
- High precision, heavy load resistance SFU1204, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
- Repeat positioning accuracy of ± 0.03mm
- Speed: 0-100mm/s
- 4 pcs M4 threaded hole to fix the workpiece
- Effective stroke:200mm, Lead:4mm ( The lead screw moves 4mm in one turn)
| Item Weight | 3.61 pounds |
|---|---|
| Manufacturer | Befenybay |
| Item model number | BE090-3 |
| Package Dimensions | 16.45 x 3.86 x 2.91 inches |
